Replacing the Epson PowerLite 1220 projector lamp

Written by
  • Shelagh M.
  • 10 years ago

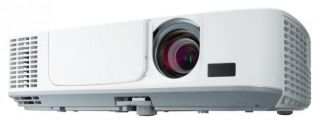

Epson_PowerLite 1260_projector_Epson_ELPLP58_projector_lampThis handy guide will help you install a new pEpson PowerLite 1220 projector lamp.

Buy an authentic Epson PowerLite 1220 projector lamp from a recognized OEM dealer. You may be tempted to buy a cheaper generic lamp in order to save money. While these knock-off lamps appear to be a bargain, they will actually end up costing you more money in the long run for the following rules:

Find this lamp on Amazon sold by these authorized dealers:

End of warning signs

Epson_PowerLite_1220_projector_Epson_ELPLP58_check_projector_lamp_hoursWhen you see the projector lamp indicator flashing orange, it’s time to change the Epson PowerLite 1220 projector lamp is reaching end of life. You may also see the Replace the lamp message on screens. Other indications are screen gets darker or starts deteriorate altogether.
Epson_PowerLite_1220_projector_Epson_ELPLP58_projector_lamp_lamp_warning In order to maintain projector brightness and image quality, replace with a new Epson LPLP58 (V13H010L58) projector lamp as soon as possible.
The Epson PowerLite 1220 projector lamp can last for close to 4,000 hours when the power consumption is set to NORMAL and up to 5,000 hours if the ECO option is used. You can check the hours left on the ELPLP58 (V13H010L58) projector lamp from the INFO Menu access off the Main Menu.

Installing a new ELPLP58 (V13H010L58) projector lamp

Before replacing the ELPLP58 (V13H010L58) projector lamp follow these important safety rules:

  1. Always unplug the power cord on the Epson PowerLite 1220 projector before replacing the projector lamp.
  2. This projector operates using high temperature. Wait at least 60 minutes before replacing the lamp so you don’t run the risk of getting burned.
  3. Never touch the bare projector lamp bulb as the oil from your fingers will burn black marks onto the projector lamp when it heats up.
  4. Never operate the Epson PowerLite 1220 projector with the projector lamp removed.

Epson_PowerLite_1220_projector_Epson_ELPLP58_remove_projector_lamp_cover
Remove the projector lamp cover screws and place to one side.
Epson_PowerLite_1220_projector_Epson_ELPLP58__remove_projector_lamp_screwsLoosen the two screws holding the Epson ELPLP58 (V13H010L58) projector lamp in place (you can’t remove them).
Epson_PowerLite_1220_projector_Epson_ELPLP58_install_new_projector_lamp
Gently lift out the Epson LPLP58 projector lamp taking care not to bang it against the projector. NOTE: The LPLP58 projector lamp contains mercury and should not be thrown into regular garbage. Recycle this lamp!
Gently insert the new Epson LPLP58 projector lamp. Make sure it fits into the Epson PowerLite 1220 projector properly. (Check that it’s facing the right way.) Tighten the Epson LPLP58 projector lamp.
You can know reset the lamp timer.

Reset the lamp timer

Epson_PowerLite_1220_projector_Epson_ELPLP58_reset_projector_lamp_timer
After you replace the lamp, you need to reset the Epson PowerLite 1220 projector lamp timer using the projector’s menu system.

  • Press the MENU button on the remote control or on the projector’s control panel. You see the main menu.
  • Select the RESET menu. Press ENTER.
  • Scroll down to select RESET LAMP HOURS. Press ENTER.
  • A prompt filed appears asking if you want to reset the lamp timer. Select YES. Press ENTER.
  • Press MENU to exit.

Longer life for the ELPLP58 (V13H010L58) projector lamp

Extend the life of the Epson ELPLP58 (V13H010L58) projector lamp with the following tips:

  • Set the Power Consumption to ECO option.
  • Clean the air filters regularly so the Epson PowerLite 1220 projector doesn’t overheat.
  • Make sure there is enough airflow around the projector.
  • Turn it off when it’s not in use.
  • Learn more: Top tips for extending DLP projector lamp life.
