Installing the Optoma EW536P projector lamp

Written by
  • Shelagh M.
  • 10 years ago

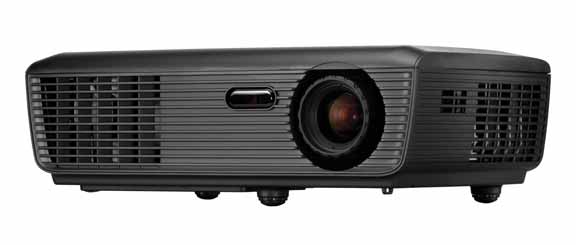

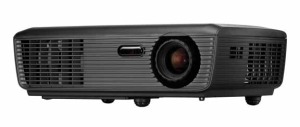

Optoma_EW536P_Optoma_BL-FU185A_SP.8EH01GC01_projector_lampChanging the Optoma EW536P projector lamp isn’t complicated. Check out this step-by-step guide to learn how.

Buying the right lamp

Purchase your lamp ahead of time and be prepared. Be sure to purchase an authentic, OES Optoma EW536P projector lamp for your Optoma EW536P projector. Avoid counterfeit lamp for the following reasons:

Find this lamp sold on Amazon by these authorized dealers:

When to replace the projector lamp

Your Optoma EW536P projector uses the Optoma BL-FU185A (SP.8EH01GC01) projector lamp . When the projector lamp is approaching end of life, you may notice the Lamp-LED light flashing red or the picture quality starting to get poor resolution with washed out colors.As the projector lamp approaches end of life, the projector lamp replacement message flashes on screen. Change your projector lamp immediately. The projector will not work if the lamp has burnt out or broken. If you hear a loud pop when turning on the projector, the Optoma BL-FU185A (SP.8EH01GC01) projector lamp has broken. Learn what to do if the lamp has exploded inside the projector. Learn how to spot the counterfeits.

Installing the Optoma BL-FU185A projector lamp

Before replacing the Optoma BL-FU185A (SP.8EH01GC01) projector lamp follow these important safety tips:

  • Switch off the power to the Optoma EW536P projector by pressing the Power/Standby button.
  • Disconnect the power cord.
  • Allow the projector to cool down for at least 30 minutes. If should be cool to the touch. These projectors run using high temperatures and you can burn yourself badly if you don’t allow the projector to cool down.

Optoma_EW536P_replacing_Optoma_BL-FU185A_projector_lamp
1. Use a screwdriver to undo the two screws holding the lamp cover in place. The screws on the lamp cover and the lamp cannot be removed.
2. Remove the lid and place to one side. Don’t lose the lid as the Optoma EW536P projector will not turn back on until the lamp cover has been properly installed.
3. Remove the two screws holding the Optoma BL-FU185A (SP.8EH01GC01) in place.
Note: The used Optoma BL-FU185A (SP.8EH01GC01) projector lamp contains mercury and should be properly recycled. Don’t throw it into regular garbage.
Optoma_EW536P_replace_Optoma_BL-FU185A_projector-lamp4. Lift up the wire handle on the Optoma BL-FU185A (SP.8EH01GC01) projector lamp and slowly remove it from the projector.
Be careful not to bang the projector lamp against the projector as this may case the bulb to break. Learn how to clean up a broken projector lamp.
5. Remove the new Optoma BL-FU185A (SP.8EH01GC01) projector lamps from its packaging. Without touching the actual bulb, lift up the handle on the new lamp and gently insert.
6. Tighten the two screws on the lamp.
7. Replace the lamp cover and tighten its two screws. You are now ready to reset the Lamp Replacement Timer.

Reset the Lamp Replacement Timer

The Optoma EW536P projector has an automatic lamp timer that tracks the numbers of hours left in the lamp. If you don’t reset the lamp replacement timer you run the risk of the lamp being used beyond its recommended life and possibly exploding in the projector.
Optoma_EW536P_lamp_control_menu_Optoma_BL-FU185A To reset the Lamp Replacement Timer:

  • Turn on the projector.
  • Using the remote press MENU
  • Select OPTIONS
  • Select LAMP SETTINGS
  • Select LAMP RESET
  • Select YES.
  • Press MENU to exit.

Tips for extending Optoma BL-FU185A (SP.8EH01GC01) lamp life:

  • Chose the “STD” mode to to dim the projector lamp and lower power consumption. This will extend the lamp life by up to 130%.
  • Keep your air filters clean to avoid overheating the projector.
  • Every 24 hours, turn off the projector and let it stand for 1 hour
  • Make sure there is enough airflow around the Optoma EW536P projector particularly if it’s been permanently mounted.

Learn more with
Top tips for extending DLP projector lamp life

Green your Optoma EW536P projector

Optoma-BL-FU185A_replacement_bulb_training_videoThe Optoma EW536P projector has the option of re-using the existing lamp cage and replacing only the actual bulb. You recycle and reduce waste this way. Watch our Optoma BL-FU185A training video to learn more.
