Installing a new Epson PowerLite 1750 projector lamp

Written by
  • Shelagh M.
  • 5 years ago

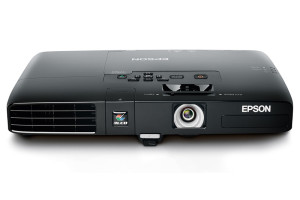

PowerLite_1750_projector_Epson_ELPLP65_projector_lampChange the Epson PowerLite 1750 projector lamp with help from this guide.

Step 1: Know when to replace

Watch for end life signs that indicate your Epson PowerLite 1750 projector lamp needs replacing:

  • projector lamp indicator flashing orange
  • Replace the lamp appears on screens
  • screen gets darker
  • color starts deteriorate altogether

Buy authentic

It’s always a good idea to be prepared with a replacement projector lamp so you can do the installation quickly.  Always go with an authentic lamp and avoid the cheaper counterfeits lamp in order to save money. While these knock-off lamps appear to be a bargain, they will actually end up costing you more.

Six reasons to avoid generics

Buy this lamp on Amazon sold by these authorized dealers:

Installing the new projector lamp

The Epson PowerLite 1750 uses the Epson ELPLP65 projector lamp. Before replacing the projector lamp follow these important safety rules:

  1. Always unplug the power cord on the Epson PowerLite 1750 projector before replacing the projector lamp.
  2. This projector operates using high temperature. Wait at least 60 minutes before replacing the lamp so you don’t run the risk of getting burned.
  3. Never touch the bare projector lamp bulb as the oil from your fingers will burn black marks onto the projector lamp when it heats up.
  4. Never operate the Epson PowerLite 1750 projector with the projector lamp removed.

PowerLite_1750_projector_Epson_ELPLP65_remove_projector_lamp-coverPowerLite_1750_projector_Epson_ELPLP65_remove_projector_lampLoosen the projector lamp cover screw and place to one side.
Remove the lamp cover.
Life the metal bar securing the Epson ELPLP65 projector lamp in place.
Lift up the project lamp handle and lift the lamp out.
PowerLite_1750_projector_Epson_remove_ELPLP65_projector_lamp

NOTE: The Epson ELPLP65 projector lamp contains mercury and should not be thrown into regular garbage. Recycle this lamp!

Epson_PowerLite_1750_projector_Install_Epson_ELPLP65_projector_lampGently insert the new ELPLP65 projector lamp.
Press down to click the projector lamp into place. PowerLite_1750_projector_Epson_insert_new_ELPLP65_projector_lamp
Place the lamp cover back onto the projector. Tighten the lamp cover screw. You can now reset the lamp timer.

Reset the lamp timer

After you replace the lamp, you need to reset the Epson PowerLite 1750 projector lamp you need to reset the timer. This will allow the projector to track the lamp life. To reset the lamp timer:
PowerLite_1750_projector_Epson_ELPLP65_Reset_projector_lamp_timer

  • Press the MENU button on the remote control or on the projector’s control panel. You see the main menu.
  • Select the RESET menu. Press ENTER.
  • Scroll down to select RESET LAMP HOURS. Press ENTER.
  • A prompt filed appears asking if you want to reset the lamp timer. Select YES. Press ENTER.
  • Press MENU to exit.

Extend the life of the Epson ELPLP65projector lamp with the following tips:

  • Set the Power Consumption to ECO option.
  • Clean the air filters regularly so the PowerLite 1750 projector doesn’t overheat.
  • Make sure there is enough airflow around the projector.
  • Turn it off when it’s not in use.
  • Learn more: Top tips for extending DLP projector lamp life.
