Replacing the Dell 1609X projector lamp

Written by
  • Shelagh M.
  • 8 years ago

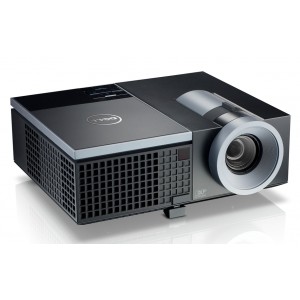

Dell_1609X_projector_Dell_311-8943_725-1012_projector_lampNo need to call a technician. This replacement guide shows you how to change the Dell 1609X projector lamp.



Go with authentic!

Keep your Dell 1609X projector keep working by installing an authentic Dell 1609X projector lamp. Avoid counterfeits for the following reasons:

Save yourself hassles and protect your Dell 1609X projector from being damaged, be sure to buy a Dell 311-8943 authentic projector lamp!

Find this lamp on Amazon sold by these authorized dealers:

End of projector lamp warnings

A blinking amber light on the Dell 1609X means the projector lamp is approaching end of life. You will also see the on-screen message “Lamp is approaching the end of its useful life in full power operation. Replacement suggested!”
Don’t wait too long or you may hear making a loud popping noise before the projector lamps burns. “Lamp Defective” will then show on screen and remain until a new projector lamp has been installed. The projector will eventually turn off.

Dell_1609X_projector_Dell_311-8943_725-1012_replace_projector_lampReplacing the Dell 1609X projector lamp

Before replacing the Dell 311-8943 (725-10120) projector lamp be sure to turn the projector off and disconnect from the AC plug. Let the projector cool down for at least 30 minutes. It should be cool to the touch. Don’t attempt to change the lamp when the projector is still hot as there is a good chance you can get severely burned.

  • Place the Dell 1609X on a soft surface and turn in upside down to access the projector lamp cover. Loose the two screws that hold the projector lamp cover in place.
  • Loosen the two screws that secure the projector lamp.
  • Pull the projector lamp up by its metal handle. Pulling too quickly can cause the bulb to shatter. NOTE: Don’t throw the Dell 311-8943 projector lamp into regular garbage! Since it contains mercury, this lamp must be properly recycled.
  • Install the new Dell 311-8943 projector lamp making sure it is properly aligned into the projector.
  • Tighten the two screws that secure the Dell 311-8943 projector lamp.
  • Replace the projector lamp cover and tighten the two screws.
  • You are now ready to reset the lamp timer.

Reset the Dell 1609X projector lamp counter

The Dell 1609X projector tracks the life of the Dell 311-8943 (725-10120) projector lamp and will trigger the warning signals when it’s time to replace. Each time you replace the Dell 311-8943 projector lamp you must reset the lamp timer to zero. Failure to do so can result in you using the projector past the optimum lamp life and causing the projector lamp to explode.

Dell_1609X_projector_Dell_311-8943_725-1012_projector_lamp_hours

  • To access the Main Menu press the left or right buttons on your projector’s control panel or remote control.
  • Scroll over the the LAMP Menu. Press ENTER to access.
  • Scroll down to the Lamp Reset icon. Press ENTER.
  • Scroll down to choose YES and press ENTER to reset the projector lamp timer.

Tips for extending Dell 1609X projector lamp life:

  • From the LAMP Menu, choose ECO MODE: Select On to use the projector at the lower power level of 165 Watts, which makes the Dell 1609X projector operate quieter and with lower light that gives more projector lamp life. Select off to operate at the 200 Watts power level.
  • Keep your air filters clean to avoid overheating the projector.
  • Every 24 hours, turn off the projector and let it stand for 1 hour
  • Make sure there is enough airflow around the Dell 1609X projector particularly if it’s been permanently mounted.
  • Learn more with Top tips for extending DLP projector lamp life.

Save money and go green

Dell_1609WX _projector_Dell_311-8943_725-1012_replace_projector_lamp_bulb

Looking for a green alternative for the Dell 1609X projector? Try replacing only the projector lamp bulb and re-using the same plastic cage with the 311-8943 projector lamp. Watch our training video to see more.
