Replacing the Epson PowerLite 1715 projector lamp

Written by
  • Shelagh M.
  • 11 years ago

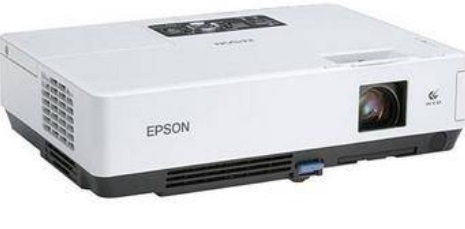

Epson PowerLite 1715 projectorReplacing the Epson PowerLite 1715 projector lamp can be completed in three easy steps.

Step 1: Watch the warning signs

When the Epson PowerLite 1715 projector lamp is approaching end of life you’ll notice the lamp light on the projector flashing orange. The image may appear dim and the colours darker than normal. When you see the “Replace the lamp” message flashing on the screen replace the lamp immediately.

Step 2: Buy the right lamp

While there are plenty of cheaper options, you should go with authentic Epson ELPLP38 lamps for a number of reasons. Watch for the seal of approval displayed by authorized dealers so you know you are purchasing an authentic lamp.
Be aware that most lamps advertised as “generic” or “compatible” are usually counterfeit lamps with inferior workmanship and will not last the full 3000 hours. But even worse, because these lamps can’t be calibrated properly, they can damage the sensitive optics in your Epson PowerLite 1715. Most are also a health hazard because of the toxic materials used.
Installing a non-OEM Epson ELPLP38 voids any warranty on your Epson PowerLite 1715. Better to avoid generics posing as authentic lamps.

Buy this lamp on Amazon from the following authorized dealers:

Step 3: Replacing the lamp

Before installation follow these important safety tips:
Epson_PowerLite_1715_unplug_projector_Epson_ELPLP38
Turn power button off. Wait for the two beeps that follow and unplug the power cord on the Epson PowerLite 1715.
Wait until the projector is cool to the touch.
DO NOT attempt to change the Epson ELPLP38 if the projector is still hot. You get badly burned if you don’t wait for the projector to cool.
IMPORTANT: Do not operate the projector when the lamp is removed as this may result in malfunctions, fire hazard and other accidents.

Epson_PowerLite_1715_loosen_cover_screw_Epson_ELPLP38


  • Loosen the screw on the Epson PowerLite 1715 projector cover using the screwdriver provided.


Epson_PowerLite_1715_remove_projector_cover
Slide the lamp cover to the side and lift it off the Epson PowerLite 1715 projector.
Epson_PowerLite_1715_loosen_lamp_screws_Epson_ELPLP38

Loosen the two screws holding the Epson ELPLP38 lamp in place. NOTE: You can only loosen these screws. They don’t come out all the way.



Epson_PowerLite_1715_remove_Epson_ELPLP38
Grab the two tabs on either side of the the Epson ELPLP38 lamp and slowly pull out the lamp out of the Epson PowerLite 1715 projector. Don’t use excessive force or the lamp could break.  What to do if lamp breaks inside the projector.
NOTE: The Epson ELPLP38 should not be thrown into the regular garden and needs to be properly recycled. Contact your authentic manufacturer and they can assist you in getting the lamp to the right recycling facility.

Epson_PowerLite_1715_change_filter_Epson_ELPLP38
Gently insert the new Epson ELPLP38 lamp into the Epson PowerLite 1715 projector.
Avoid touching the actual lamp since your fingerprints will cause black out spots to appear when the projector starts working.
Push down the corner marked PUSH until the lamp snaps in.
Once the Epson ELPLP38 lamp is fully inserted, tighten the screws.
Slide out the air filters found at the bottom of the projector. Remove the current filter.
Slide in the new air filter until it clicks into place.
You are now ready to reset the lamp timer.

Resetting the Epson PowerLite 1715c Lamp Timer

It’s important to reset the PowerLite 1715 has a lamp timer each time a new lamp is installed so the projector can accurately track the Epson ELPLP38 lamp. Never use the Epson ELPLP38 lamp beyond its recommended usage as this can damage the Epson 1715 projector beyond repair.

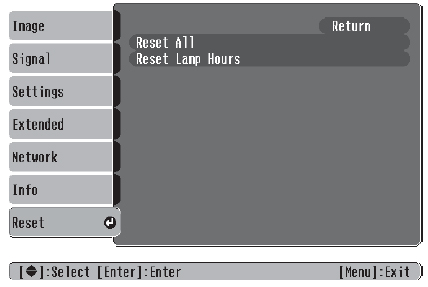

Epson_PowerLite_1700_reset_lamp_timer_Epson_ELPLP38Press MENU
Scroll down to RESET. Press ENTER.
Scroll down RESET LAMP HOURS. Press ENTER.
A second prompt screen will appear. Select YES at the prompt screen. Press ENTER.
Press ESC or MENU to exit.

Extending the life of your Epson ELPLP38 lamp

Follow this simple tips to make your Epson ELPLP38 lamp last even longer:

  • Keep your air filters clean to avoid overheating the projector and causing the lamp to overheat.
  • Turn off the Epson PowerLite 1715 projector for at least one hour ever 24 hours.
  • Don’t overuse the lamp. An average use of four to five hours per day will ensure longer lamp life.
  • Make sure there is enough airflow around the projector particularly if it’s been permanently mounted so it doesn’t overheat.
  • Set the Brightness Mode to low. Prolong the life of the Epson ELPLP38 from 2000 hours to 3000 hours by lowering the Brightness Control to low!
  • Learn more with Top tips for extending DLP projector lamp life
