Your guide to replacing the Epson EB-S6/EB-X6 projector lamp

Written by
  • Shelagh M.
  • 12 years ago

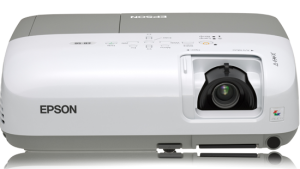

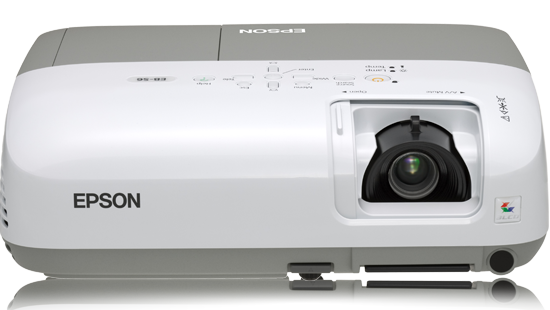

Epson-EB-S6-projector-Epson-ELPLP41-lamp

Replacing the projector lamp for the Epson EB-S6/EB-X6 is quick and easy.

You can expect up to 3000 hours from your lamp if the Brightness Controls have been set to High, 4,000 hours if it has been set to Low.




Know when to replace

Epson-EB-S6-EB-X6-projector-warning-light-Epson-ELPLP41-lampWatch for the signs that the Epson ELPLP41 needs to be replaced in the Epson EB-S6/EB-X6 projector:

  • Dark image
  • Image that has deteriorated
  • On warning message appears on screen
  • Lamp light flashes orange
  • Lamp light turns red and stays on
  • Check Lamp Usage

Epson-EB-S6-EB-X6-projector-check-lamp-life-Epson-ELPLP41-lampTo check the number of hours:

  • Press the MENU button
  • Scroll down to highlight the INFO Menu. The number of hours let will be shown on screen.

The importance of authentic lamps

It’s critical to install a genuine Epson ELPLP41 rather than a compatible generic lamps. Although lower in price initially, generic, knock-off lamps end up costing much more in the long run and come with many problems that just add up to one giant headache. Be sure the purchase an authentic Epson ELPLP41 projector lamp for your EB-S6/EB-X6 projector. Save yourself unnecessary headaches and buy authentic from a recognized dealer. You’ll be getting a far superior product with a replacement guarantee and tech support.

6 reasons for avoiding generic lamps

Read more about the 7 Ways to Spot a Counterfeit Lamp.

How to install the Epson ELPLP41

Before installation:

  • Turn power button off wait for light to stop flashing.
  • Turn off power swtich on the back of the Epson EB-S6/EB-X6 projector.
  • Unplug the power cord.
  • Allow the Epson EB-S6/EB-X6 projector to cool for one hour – it should be cool to the touch. Inside of the projector can be very hot since these machines operator under high temperatures and you run the risk of being burned if the projector has not cooled down.
  • Do not operate the projectors while any of the lamps are removed as this may result in malfunctions, fire hazard and other accidents.

Caution: Don’t touch the screen or the actual bulb with your finger since the oil from your skin can cause a black spot on the bulb.

Epson-EB-S6-EB-X6--projector-lamp-cover-Epson-ELPLP41-lamp
The lamp cover is found on top of the Epson EB-S6/EB-X6 projector. Loosen the lamp cover screw — you can’t remove it only loosen it.
Epson-EB-S6-EB-X6--projector-lamp-cover-off-Epson-ELPLP41-lampSlide the Epson EB-S6/EB-X6 lamp cover off.


Epson-EB-S6-EB-X6--projector-lamp-screw-loosen-Epson-ELPLP41-lamp

Loosen the two screws holding the Epson ELPLP41 lamp in place.





Epson-EB-S6-EB-X6-projector-lamp-removed-Epson-ELPLP41-lamp
Grab the Epson ELPLP41 lamp by the two indents on the lamp. Gently remove the lamp.
Pulling too quickly can cause the bulb to shatter. Learn what to do should the bulb shatter.
NOTE: The Epson ELPLP41 lamp contains mercury and should not be thrown into regular garbage. Recycle your used lamps! If you bought from an authentic manufacturer they will recycle the lamp for you at no extra cost (another reason to buy authentic lamps).


Epson-EB-S6-EB-X6-projector-lamp-installed-Epson-ELPLP41-lamp
Gently insert the Epson ELPLP41 lamp making sure it’s facing the right way.
Epson-EB-S6-EB-X6-projector-tighten-screws-Epson-ELPLP41-lamp

Tighten the screws on the new Epson ELPLP41 lamp.




Epson-EB-S6-projector-cover-replaced-Epson-ELPLP41-lamp

Replace the lamp cover and tighten the screw on the EB-S6/EB-X6 lamp cover.
You are now ready to reset the lamp timer.




Reset the lamp timer on the Epson EB-S6

Reset the EB-S6/EB-X6 Lamp Replacement Counter only when the Epson ELPLP41 lamp has been replaced.

Epson-EB-S6-EB-X6-projector-lamp-reset-screen-Epson-ELPLP41-lamp

  • Press the MENU button on the remote control. The Lamp Reset Menu will appear.
  • Scroll down to the RESET LAMP HOURS. Press ENTER.
  • A prompt appears asking if you want to replace the lamp.
  • Select YES and press ENTER.
    Press MENU to exit.





Prolong the life of the Epson ELPLP41 lamp:

Extend the life of the newly installed Epson ELPLP41 with the following tips:

  • Keep your air filters clean to avoid overheating the projector.
  • Turn off the EB-S6/EB-X6 projector and let it stand for at least one hour ever 24 hours. An average use of four to five hours per day will ensure longer lamp life.
  • Make sure there is enough airflow around the projector particularly if it’s been permanently mounted.
  • Learn more with Top tips for extending DLP projector lamp life
